Sigma 130.2

Sigma 130.2

130MM 2-Way Passive Loudspeaker System

  • 130mm Loudspeaker system
  • 225 | 150 Watt
  • 3 Ohm Impedance
  • Woofer with HEXATEC cone
  • Crossover (separable)

Description

OVERVIEW

The GLADEN SIGMA 130.2 two-way system impresses with an optimal price/performance ratio, which achieves the best possible sound performance with any music material in car audio applications.

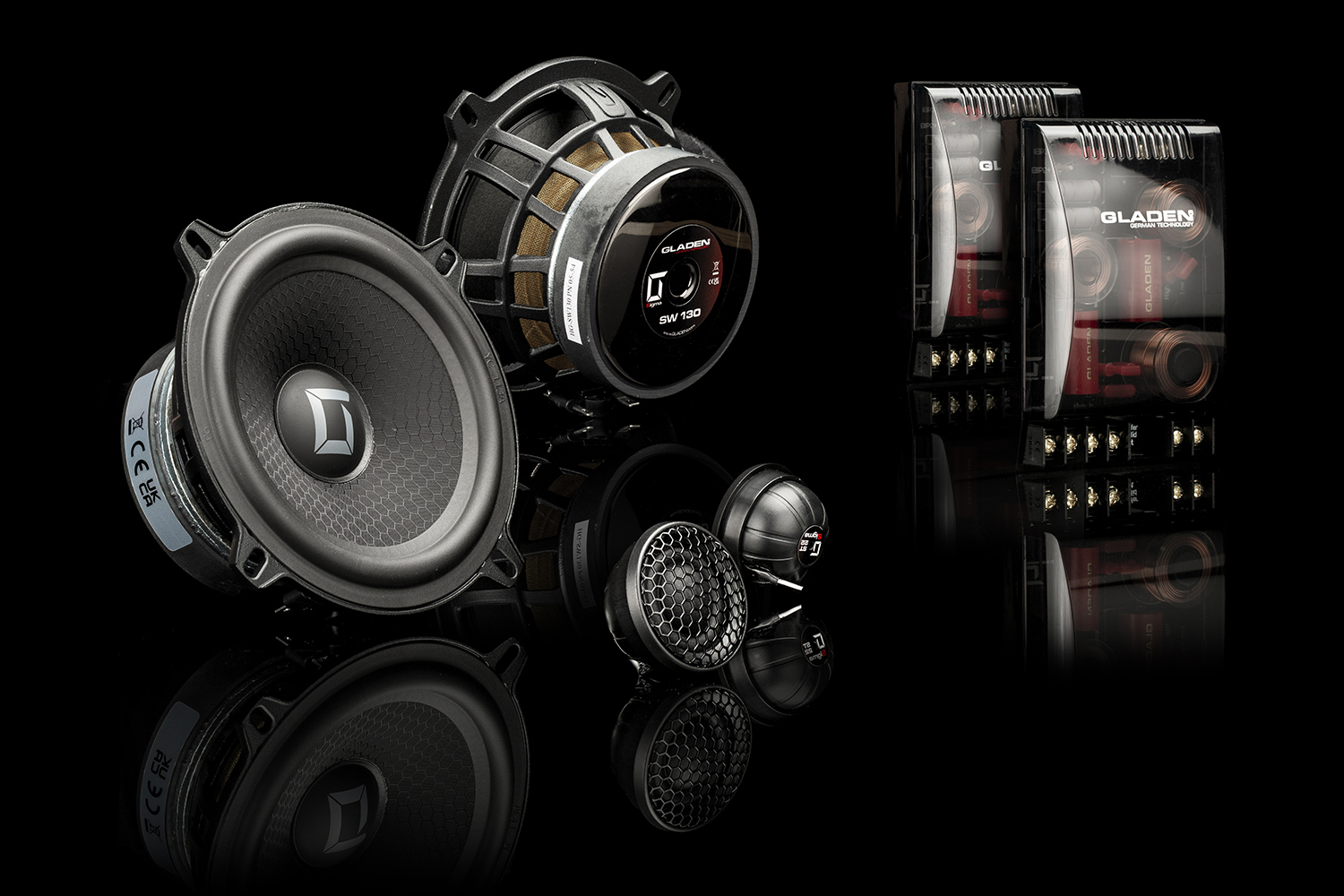

Every component of the GLADEN SIGMA 130.2 has been carefully developed and built to meet the high demands of the vehicle. Maximum flexibility combined with unique performance: the GLADEN SIGMA series combines these two worlds to perfection. A 22mm silk tweeter with coupling volume and a wide range of installation accessories, and a 130mm woofer with a new HEXATEC cone and an extended maximum excursion inspire with musical drive. Thanks to its linear frequency response up to well over 10,000 Hz, the 130mm woofer can also be used excellently as a midrange driver in SQL configurations. In addition to very good mid-range reproduction, its powerful drive unit also offers remarkable bass reproduction for its size.

Installation is quick and easy thanks to the flexible crossovers (woofer/midrange and tweeter sections can be separated). In addition to conventional operation, this crossover design also allows a bi-amping configuration.

“The GLADEN SIGMA series stands for exclusive car audio speakers that turn every car hi-fi system into an incomparable sound experience.”


FEATURES

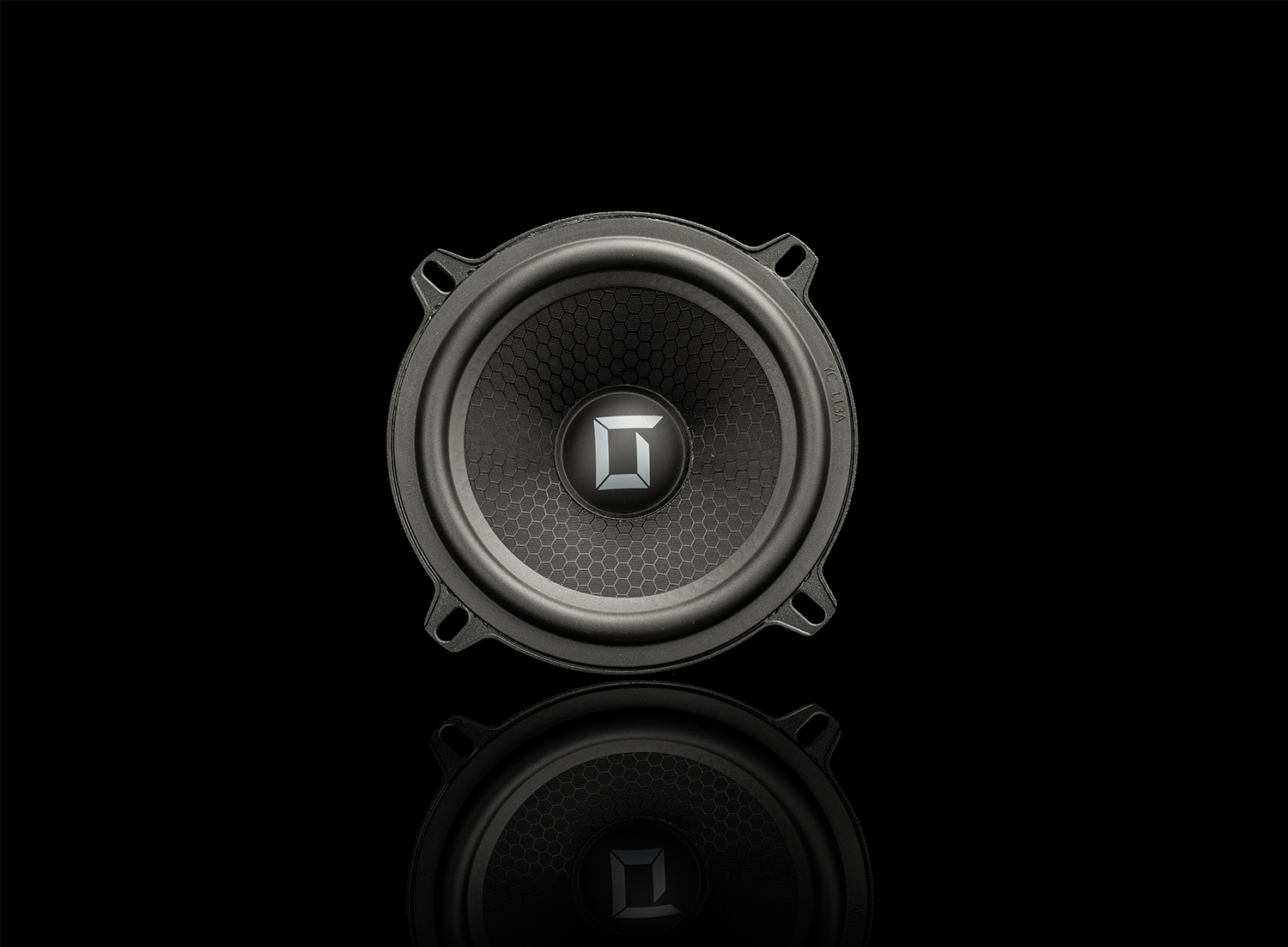

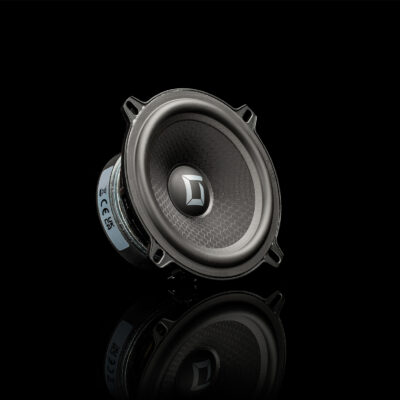

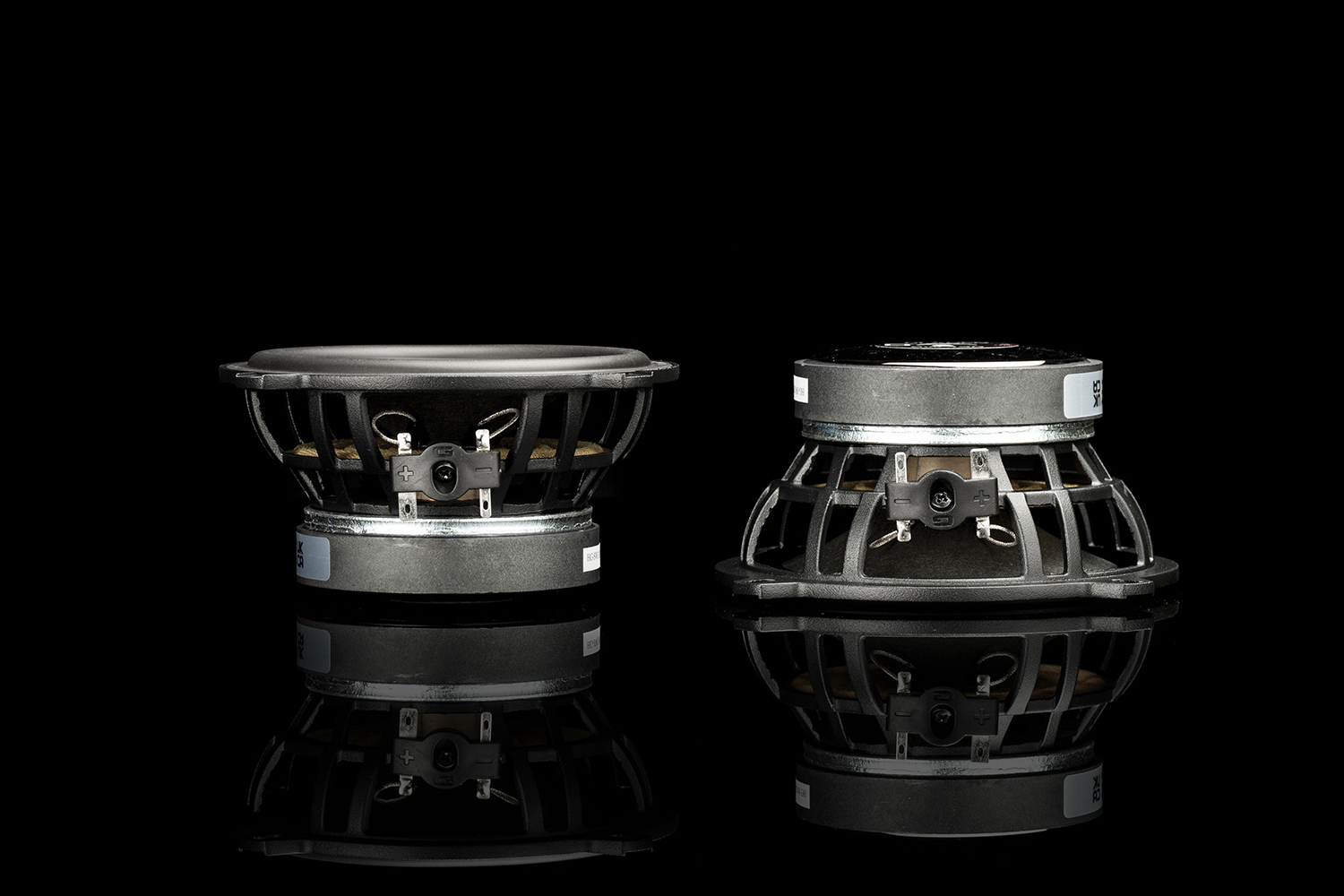

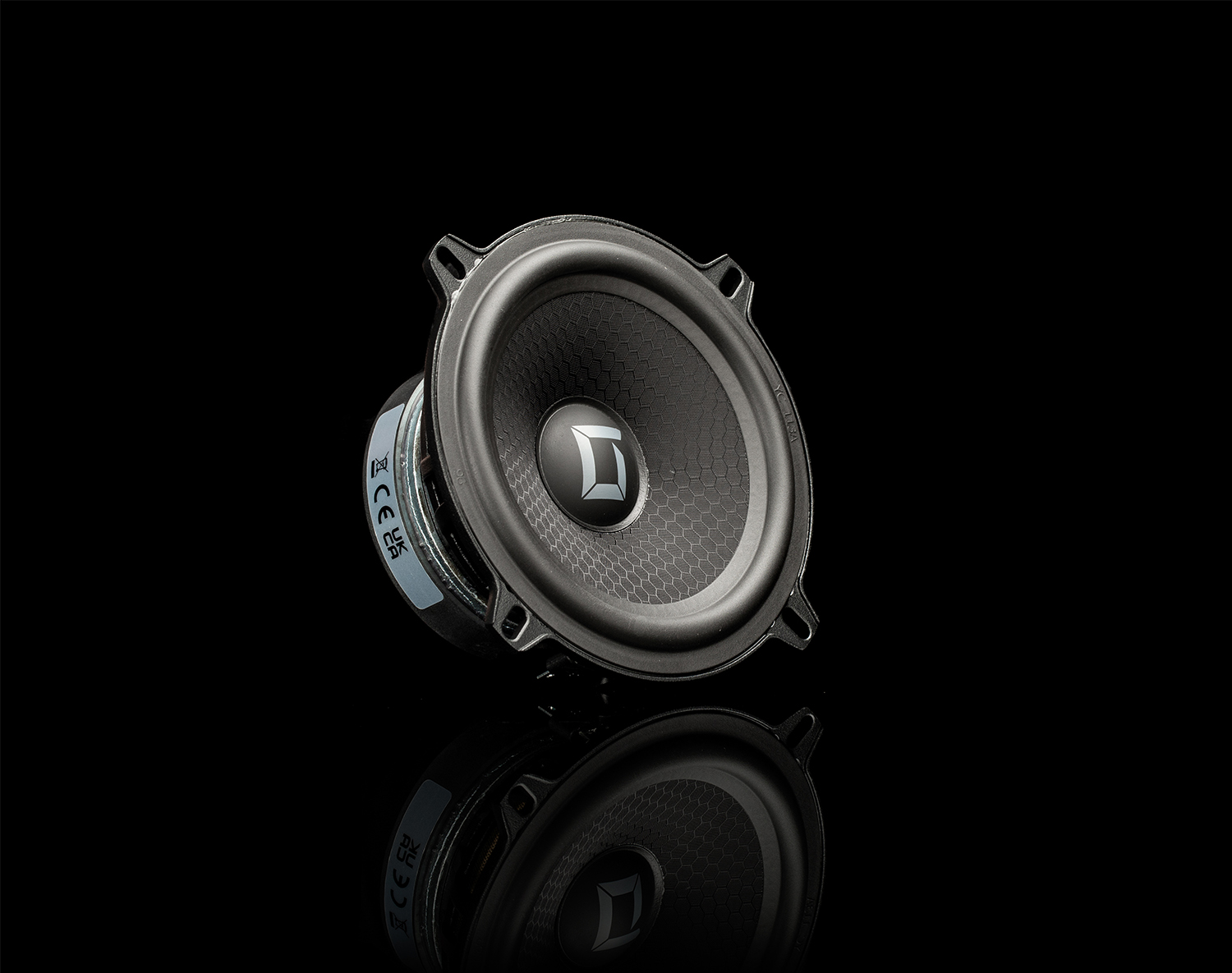

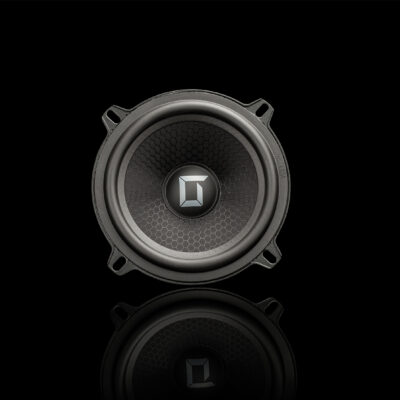

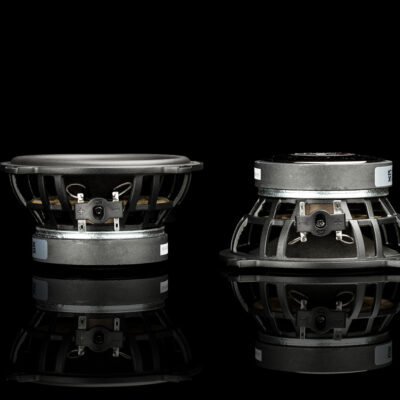

Woofer

  • Size: 130 mm
  • HEXATEC Compound – Cone
  • Cast aluminum basket
  • Flow-optimized basket design
  • Nomex Spider
  • 25 mm Voice coil
  • Sturdy plug-in terminals
  • Soft Dust Cap

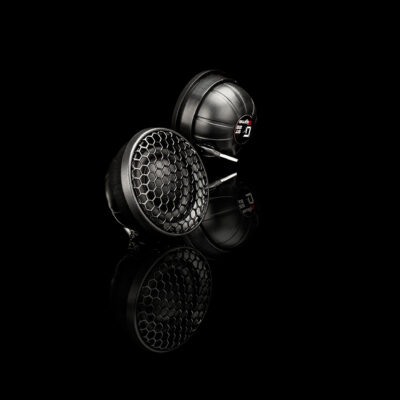

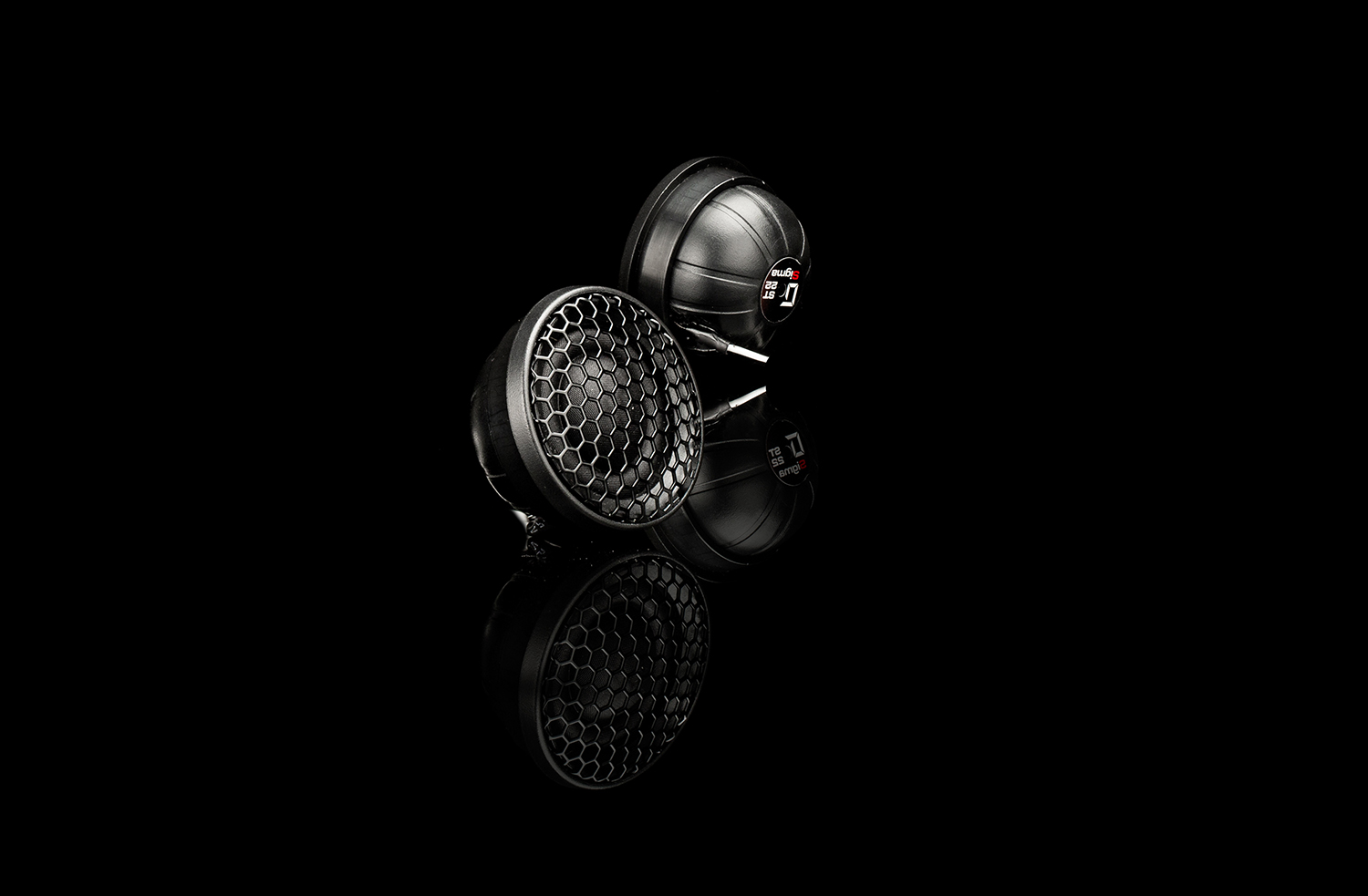

Tweeter

  • Size: 22 mm (voice coil)
  • Silk fabric membrane
  • Plastic housing with coupling volume
  • Hexagon-Grill
  • 4 Ohm Impedance
  • incl. surface-mounted housing with drilling template
  • Installation rings with metal strips
  • Optional accessories: OEM grille

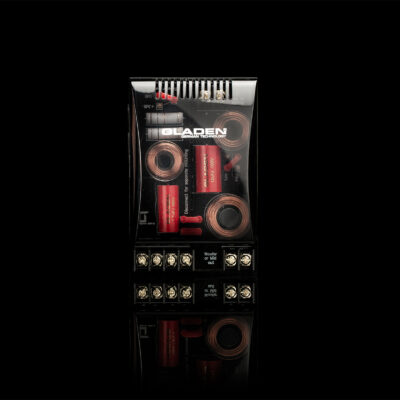

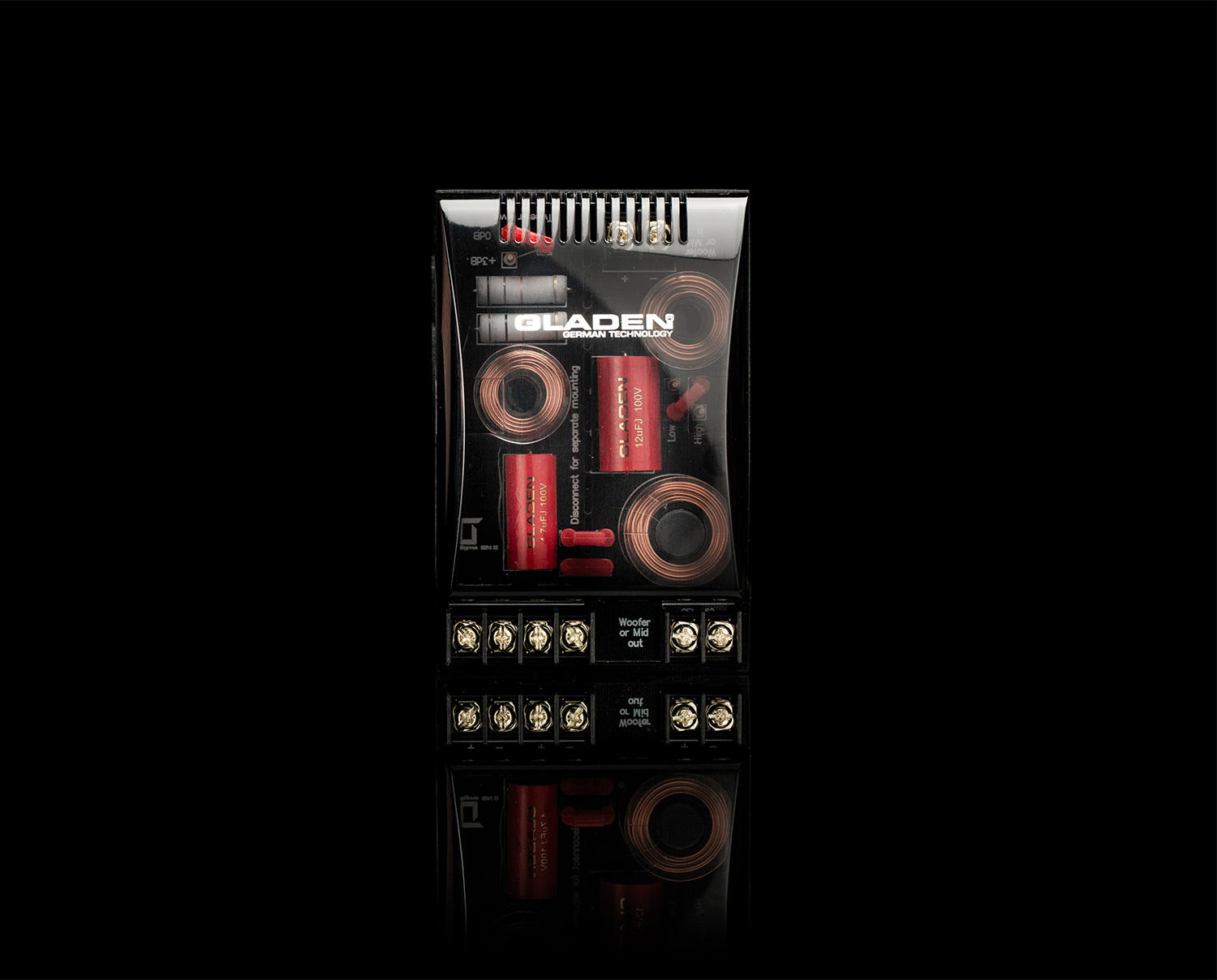

Crossover

  • Plexiglas housing
  • Separable circuit board
  • various setting options
  • Gold-plated screw terminals
  • incl. shrink tubing for separate installation

TECHNICAL DATA



Woofer

  • Diameter: 130 mm
  • Belastbarkeit: Power handling
  • Impedance: 3 Ohm
  • Fs: 62,9 Hz
  • Re: 2,63 Ohm
  • Qms: 3,895
  • Qes: 0,49
  • Qts: 0,44
  • Vas: 7,0 Liter
  • Sq: 86 cm²
  • Mms: 9,69 g

Tweeter

  • Diameter: 22 mm
  • Power handling: 120 | 80 Watt (3,5 kHz|24dB/Okt.)
  • Impedance: 4 Ohm
  • Fs: 790 Hz
  • Re: 3,63 Ohm
  • Sq: 3,8 cm²
  • Sq: 3,8 cm²

Crossover

  • Crossover frequency (low): 4000 Hz
  • Crossover frequency (high): 5500 Hz
  • Level adjustment (tweeter): 3 dB
  • Bi-amping capable: yes
