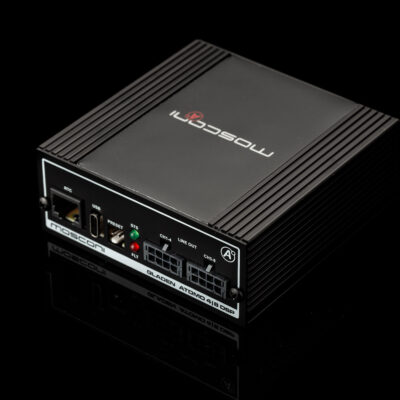

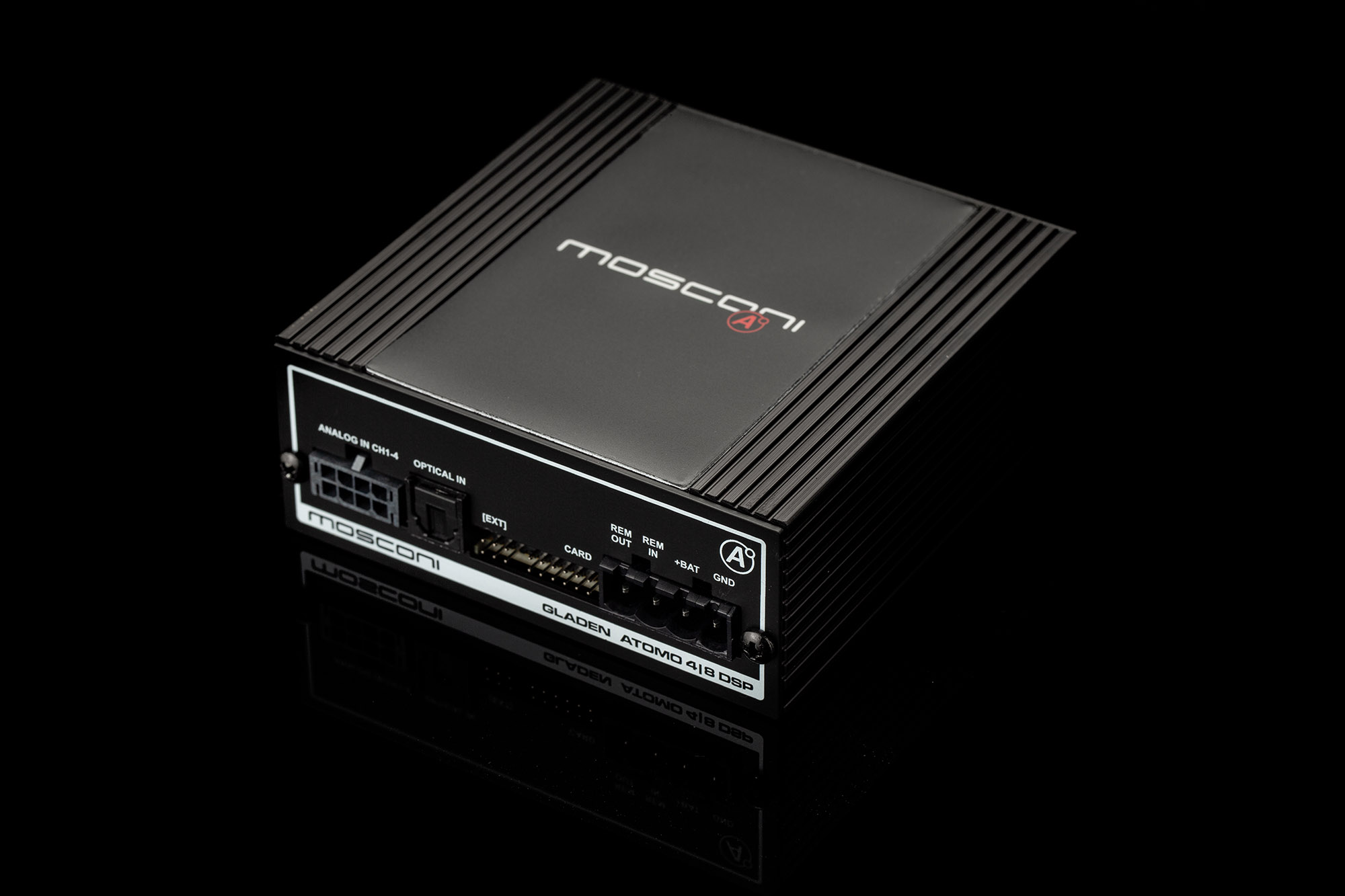

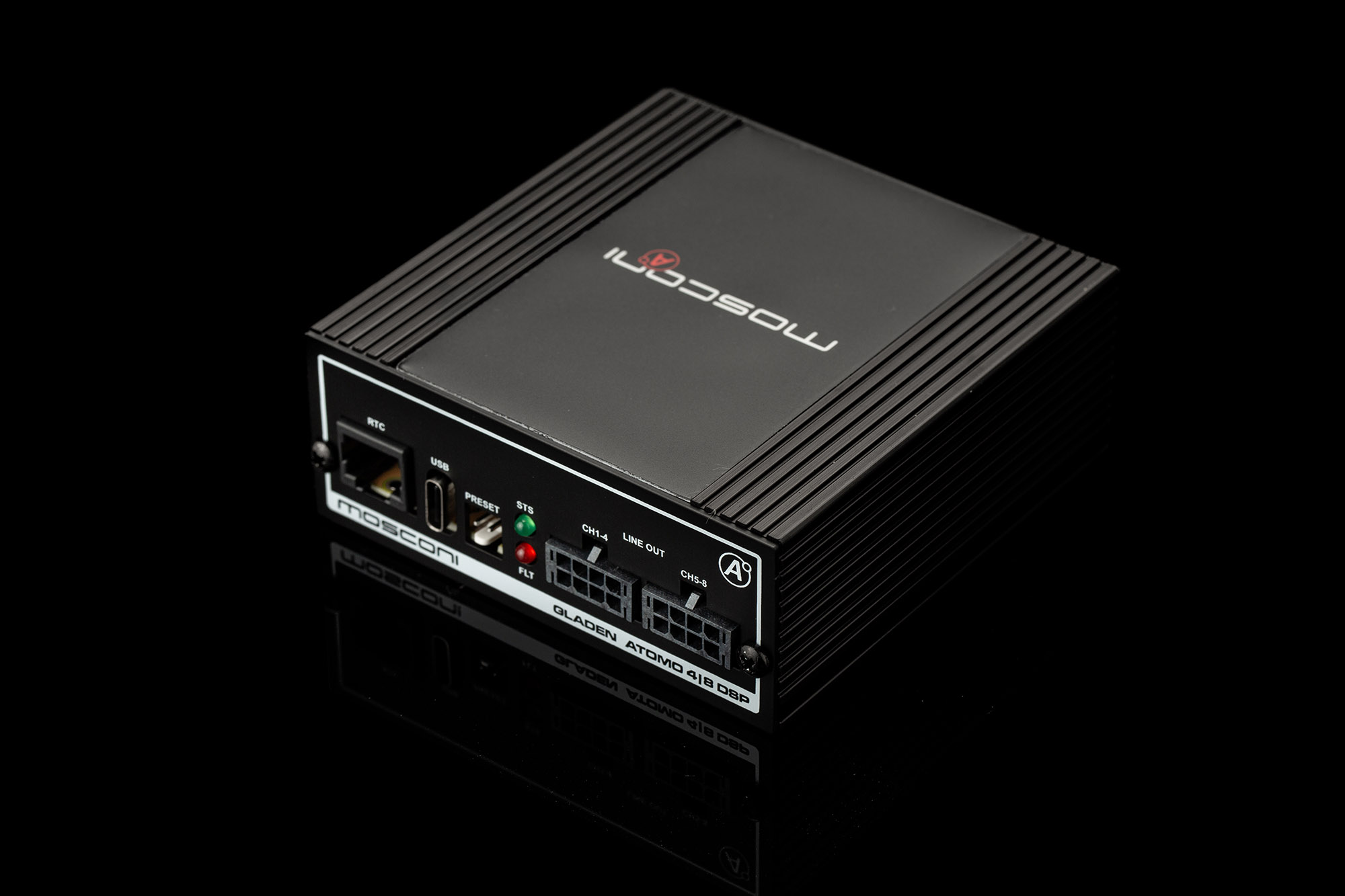

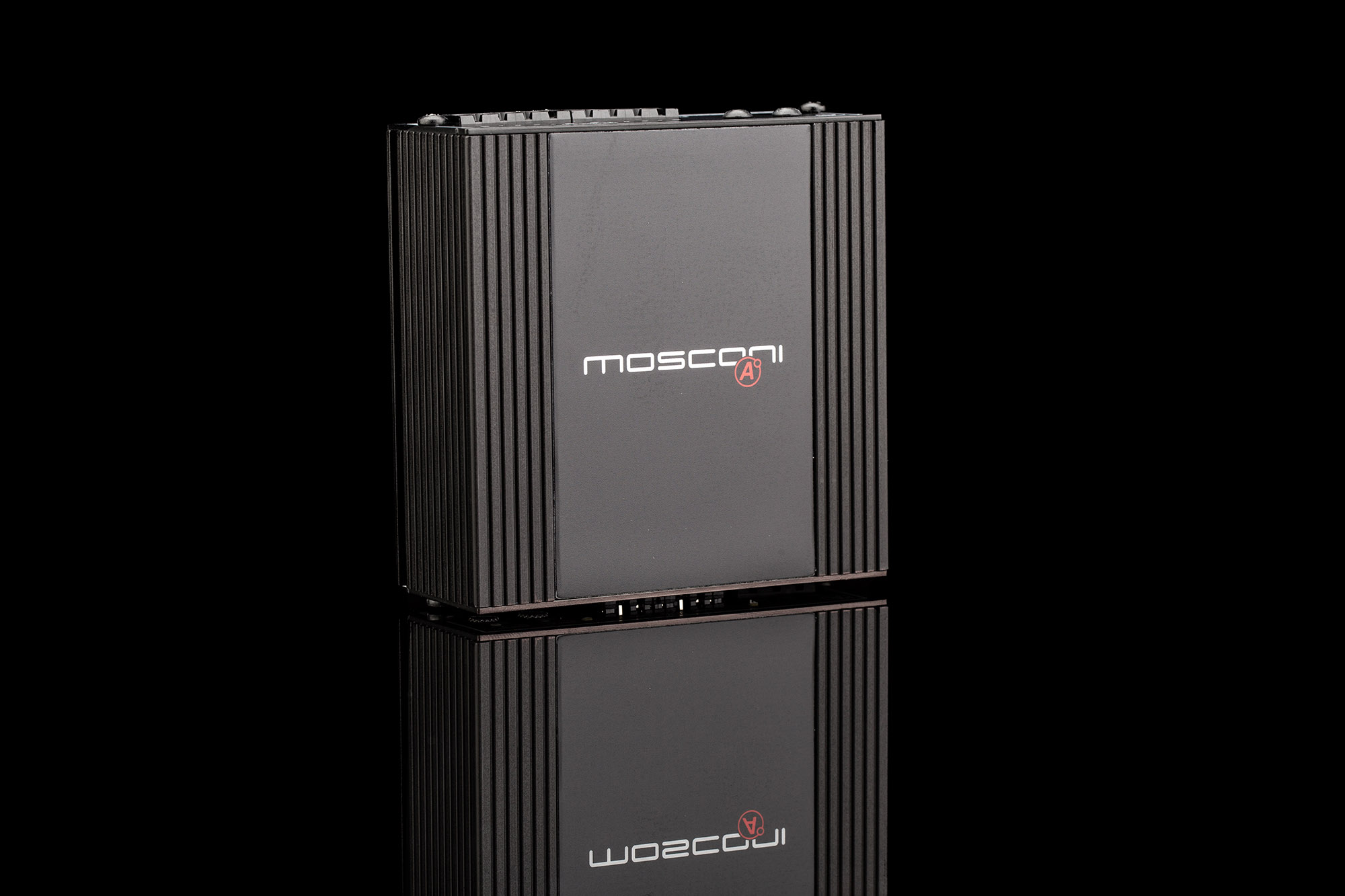

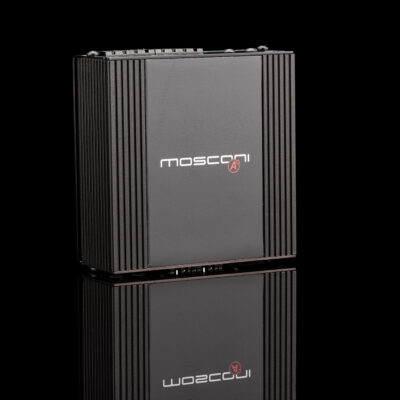

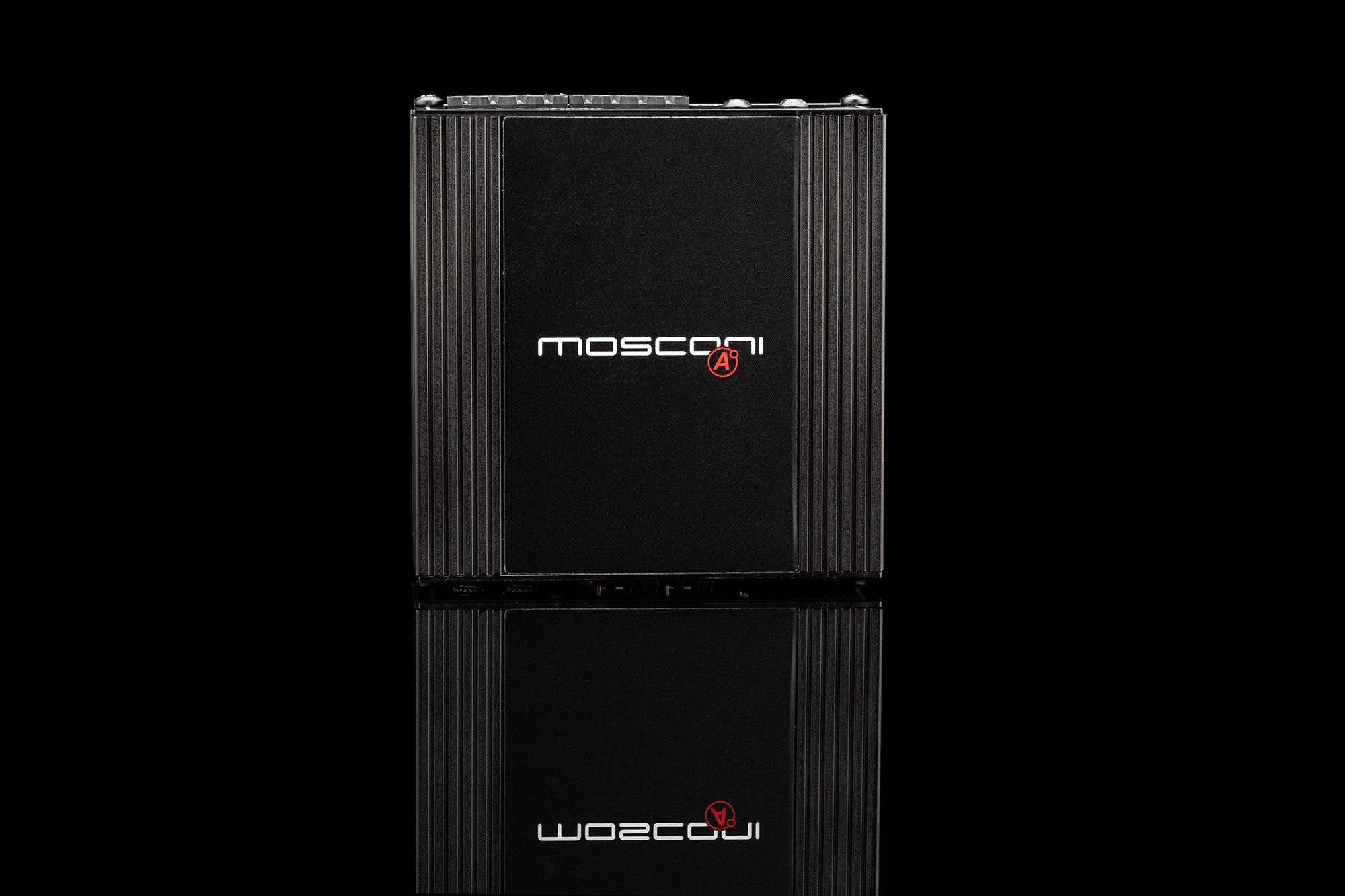

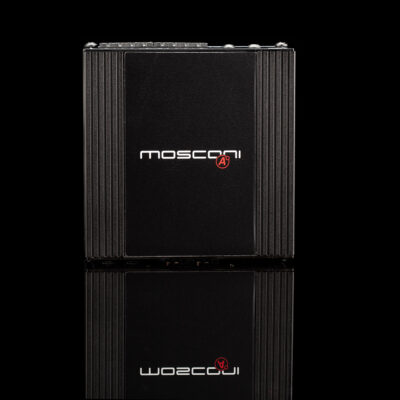

ATOMO 4|8 DSP “Matrix” – Maximum performance in the smallest possible space

• Extremely powerful DSP in a compact design.

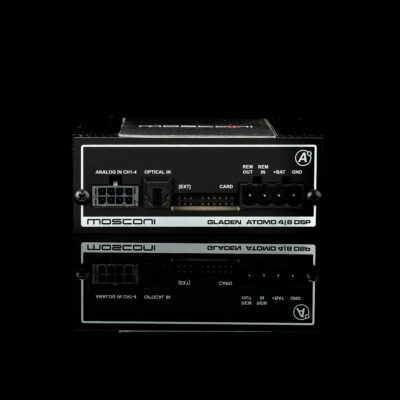

• Four analog (high/low level) and three digital inputs (SP-Dif, Bluetooth streaming with MOS-BTS, BT+ with direct DSP access).
• Expandable to 8 analog inputs with MOS EXT4HLin.
• Compatible with 12 V and 24 V on-board power supply.

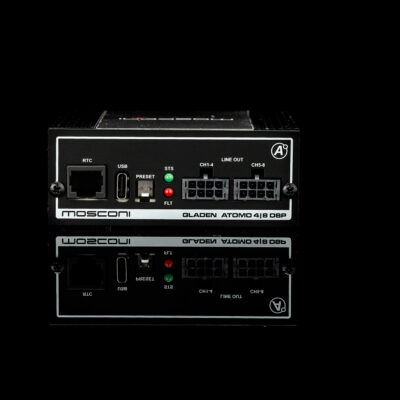

• Six analog outputs. 64 bit platform with dISC functions (dynamic equalizer and phase control).

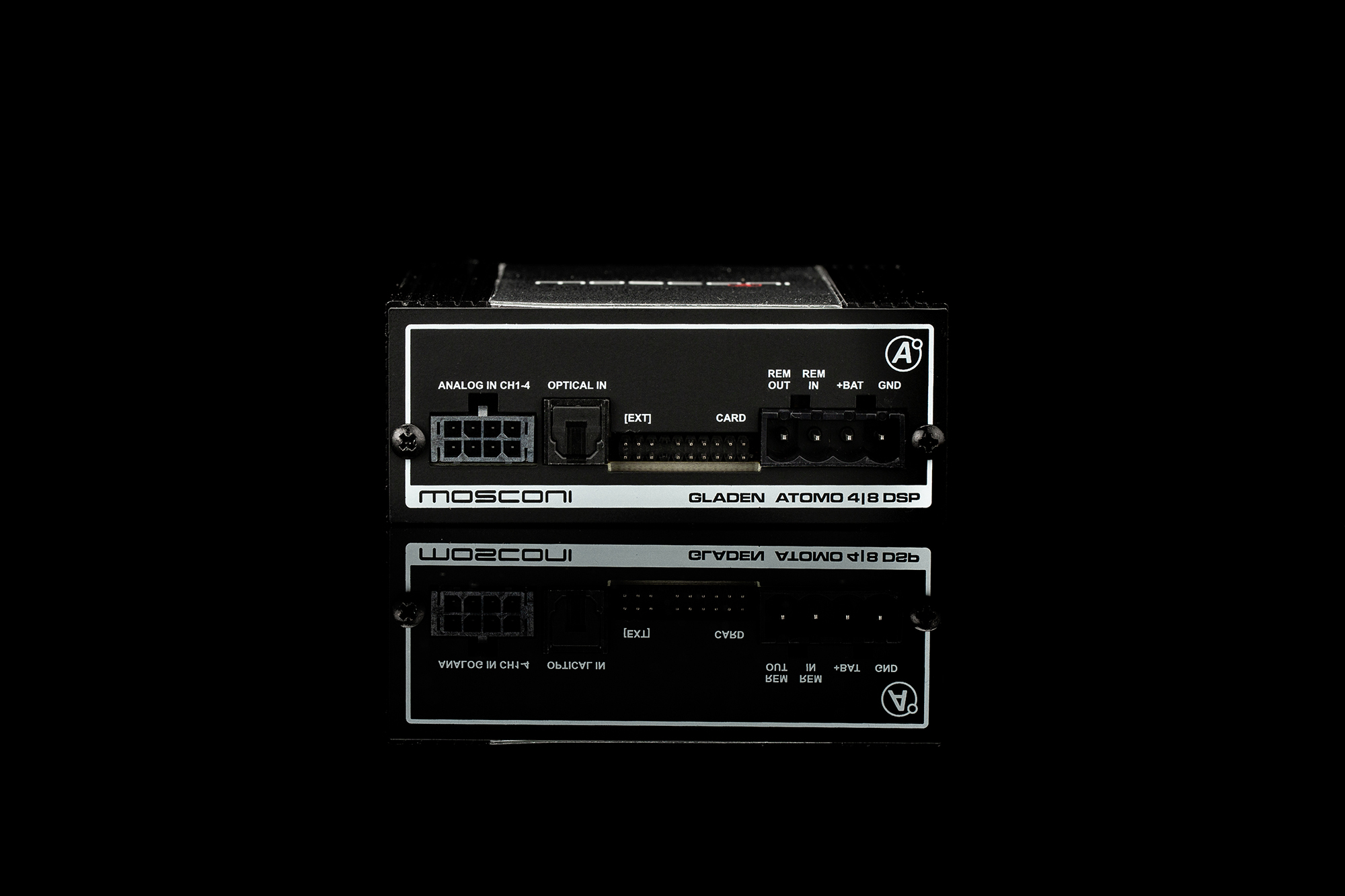

• All connectors Molex industry standard.

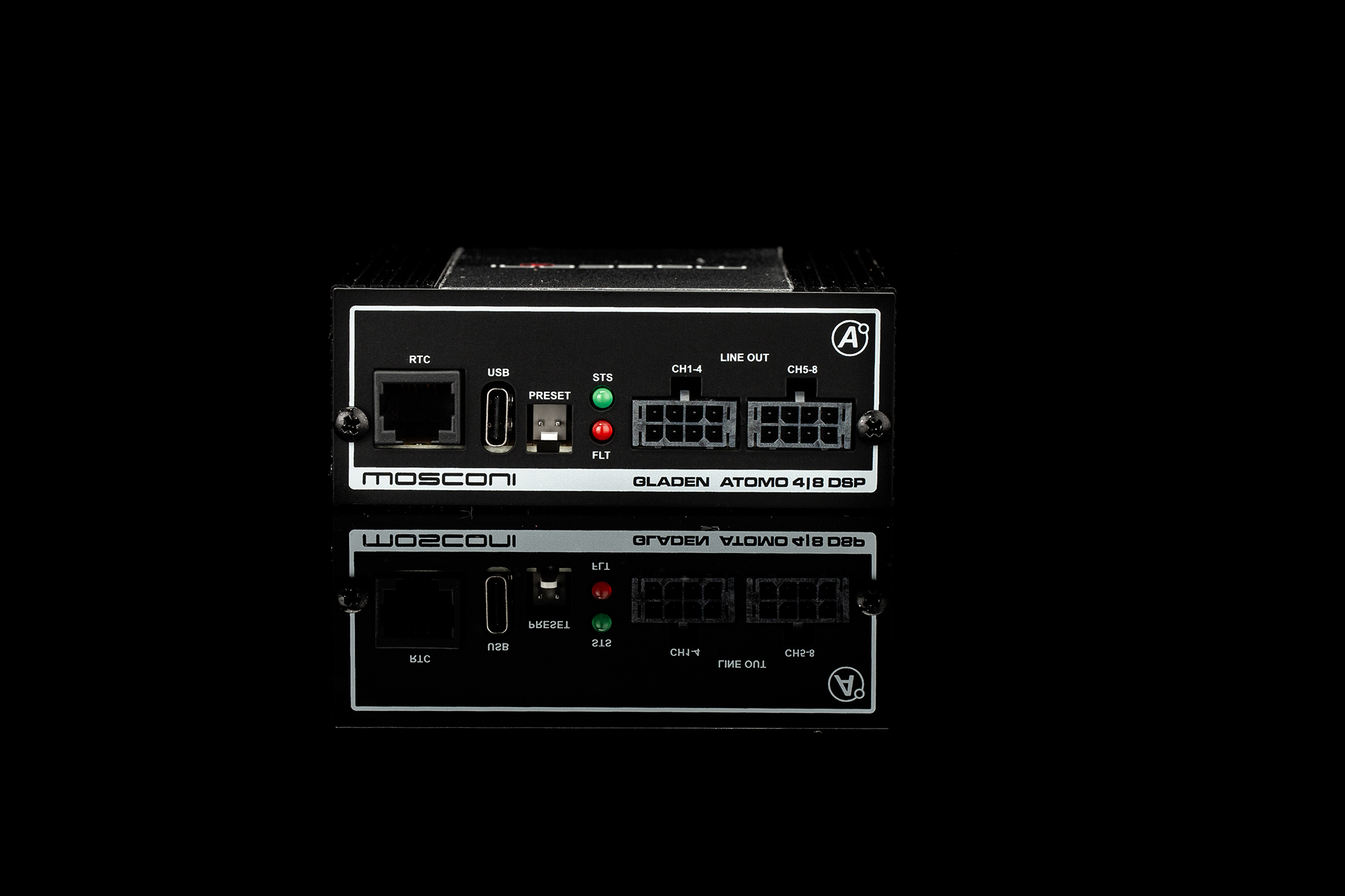

• Direct RTC connection for volume, sublevel or input volume.

DOWNLOADS:

• Gladen Atomo 4TO8 DSP Manual

SPECIFICATIONS:

• Operating Voltage: 8 V – 32 V
• Operating Voltage via USB: 5 V
• Input voltage: 2 Vrms (low-level) / 12 Vrms (high-level)
• Dimensions: 86 x 86 x 34 mm
• Weight: 245 gramm
