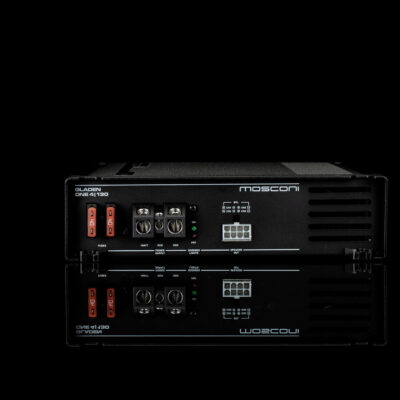

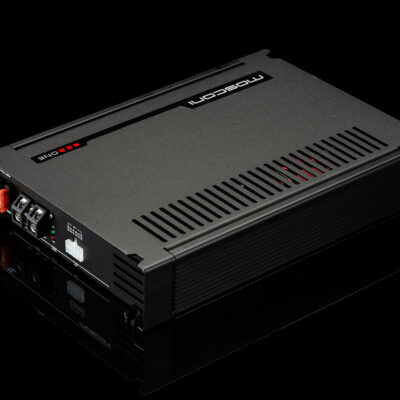

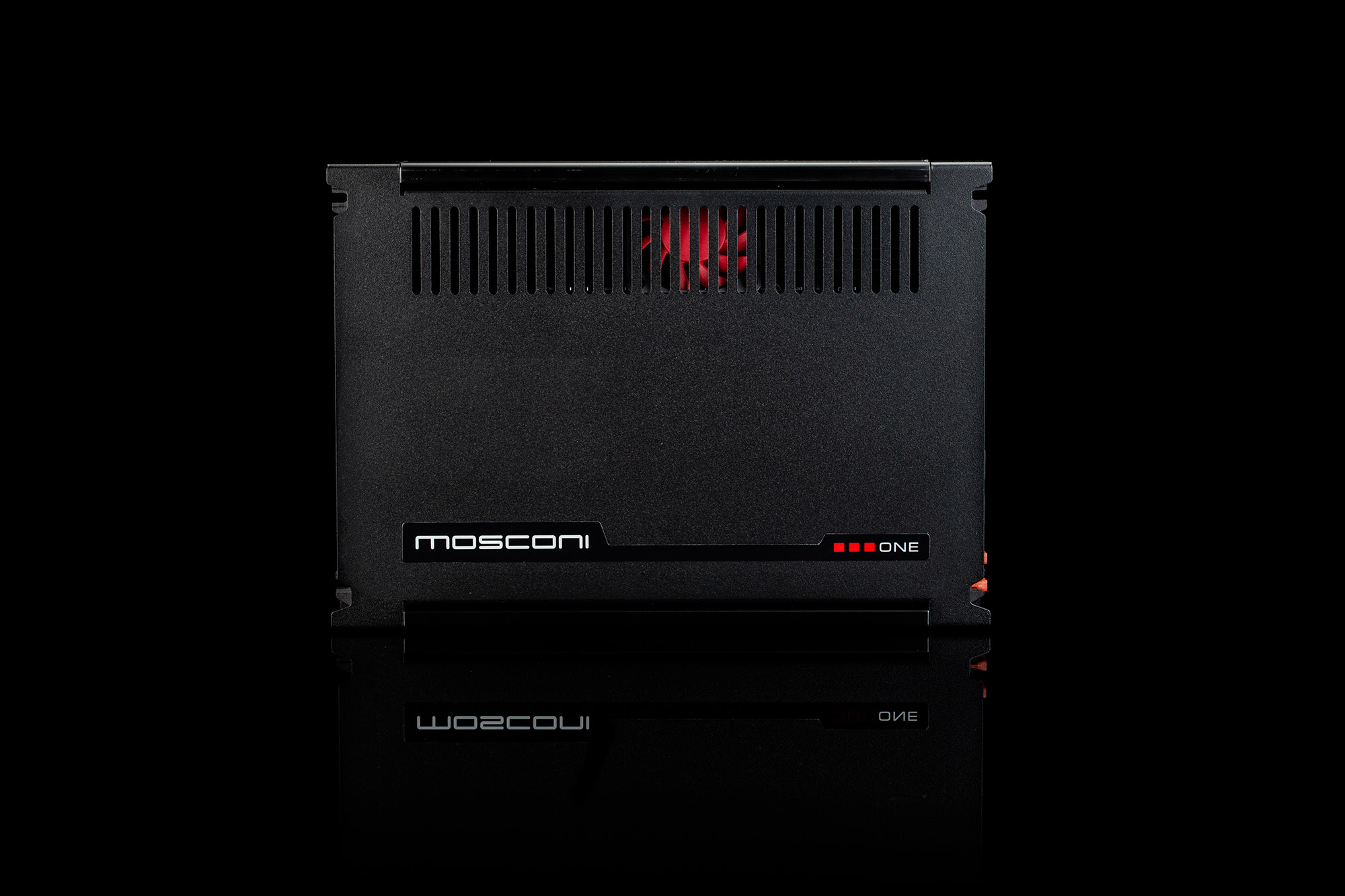

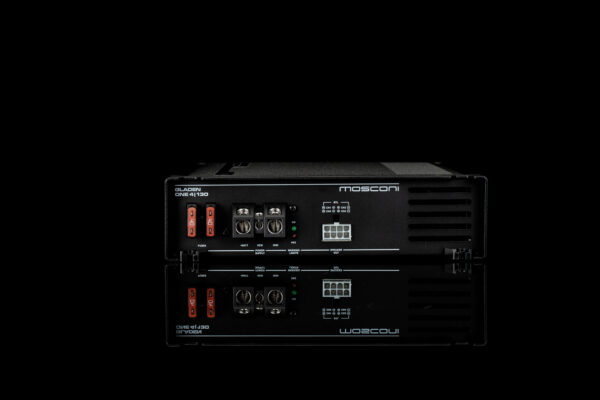

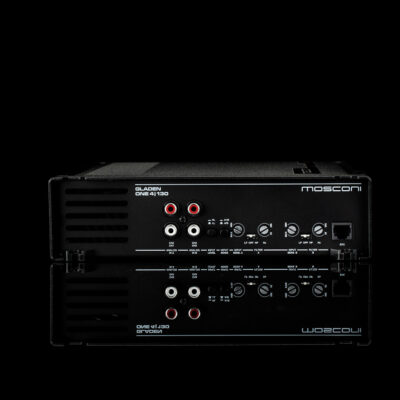

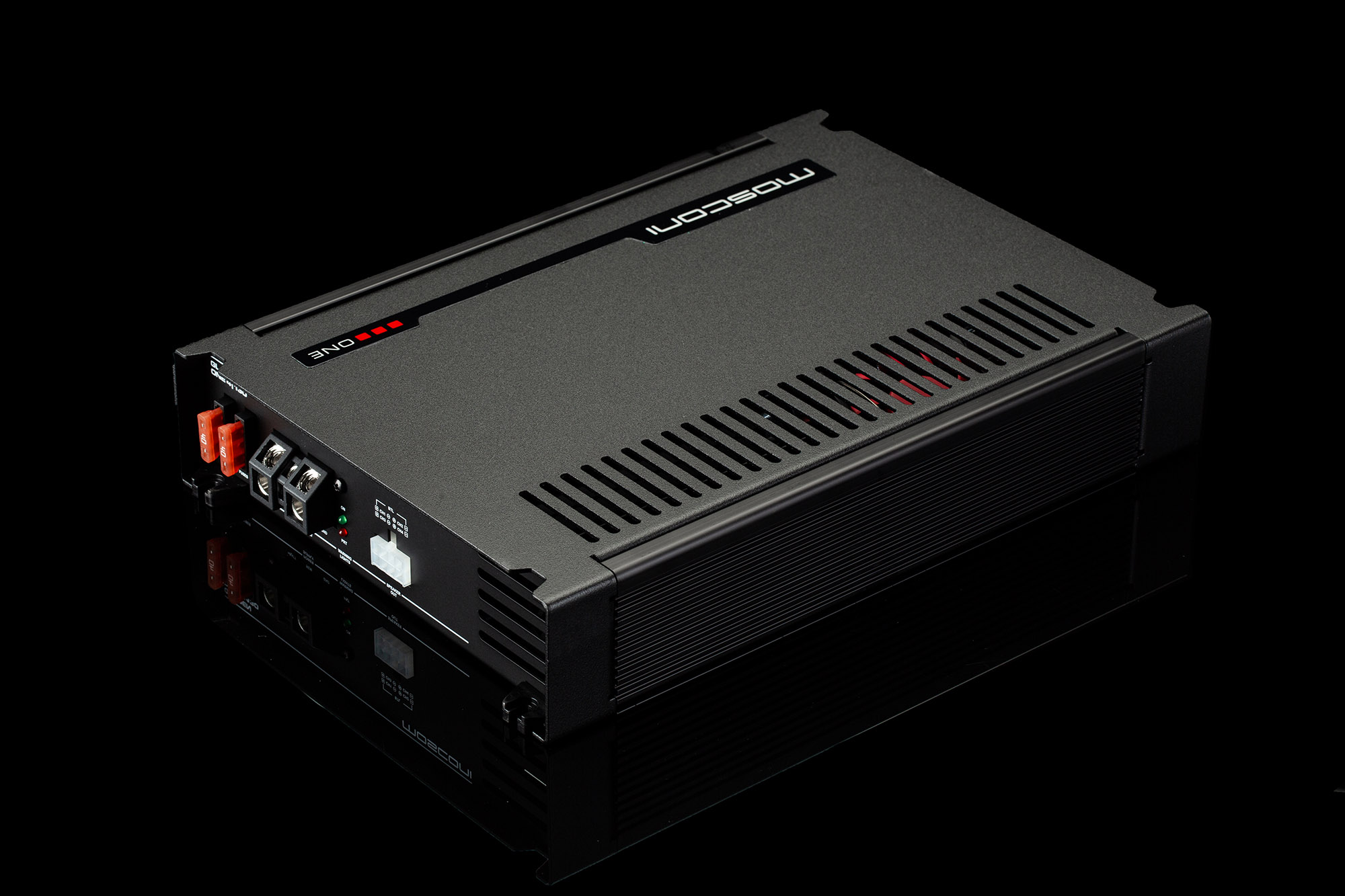

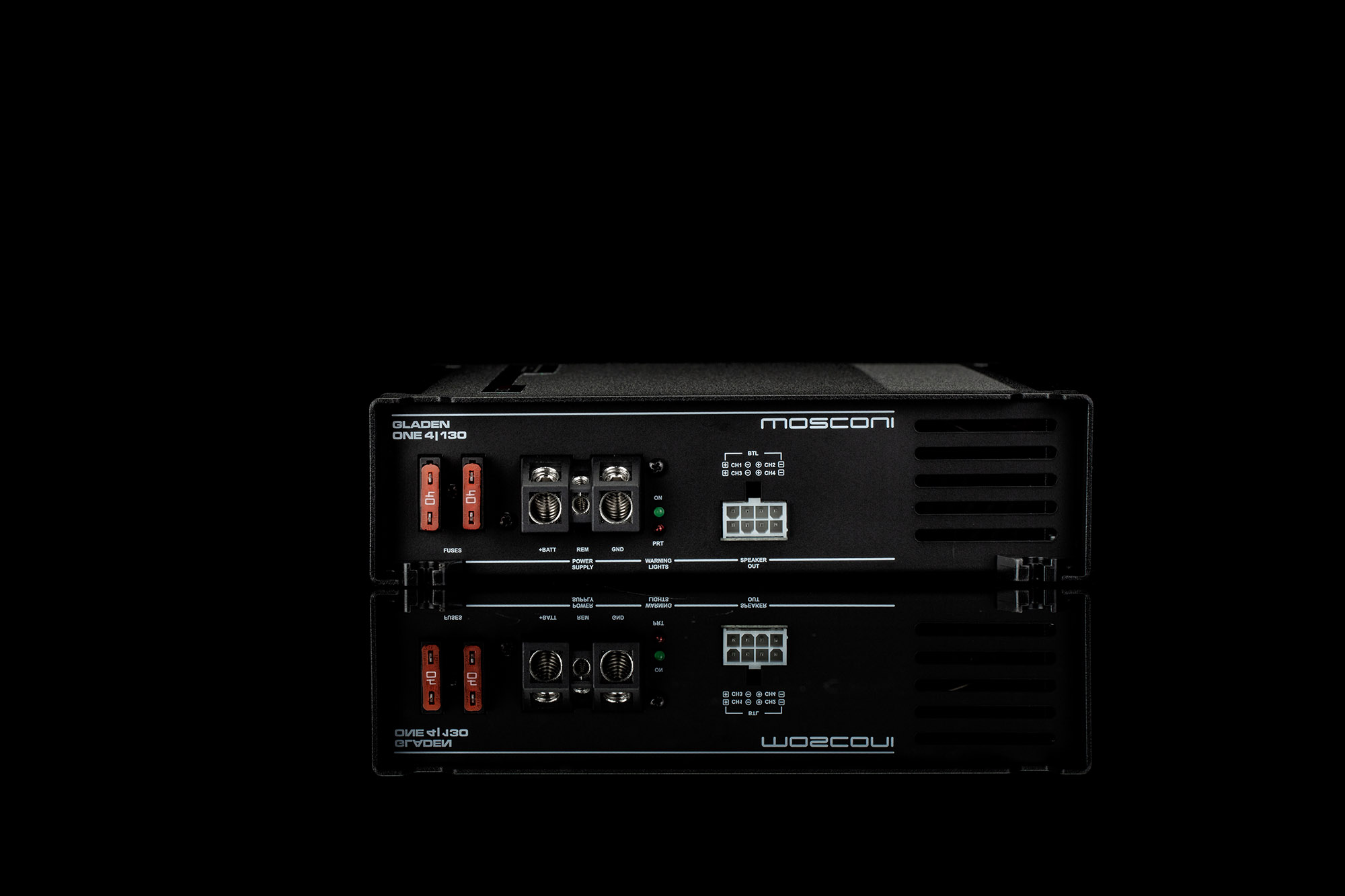

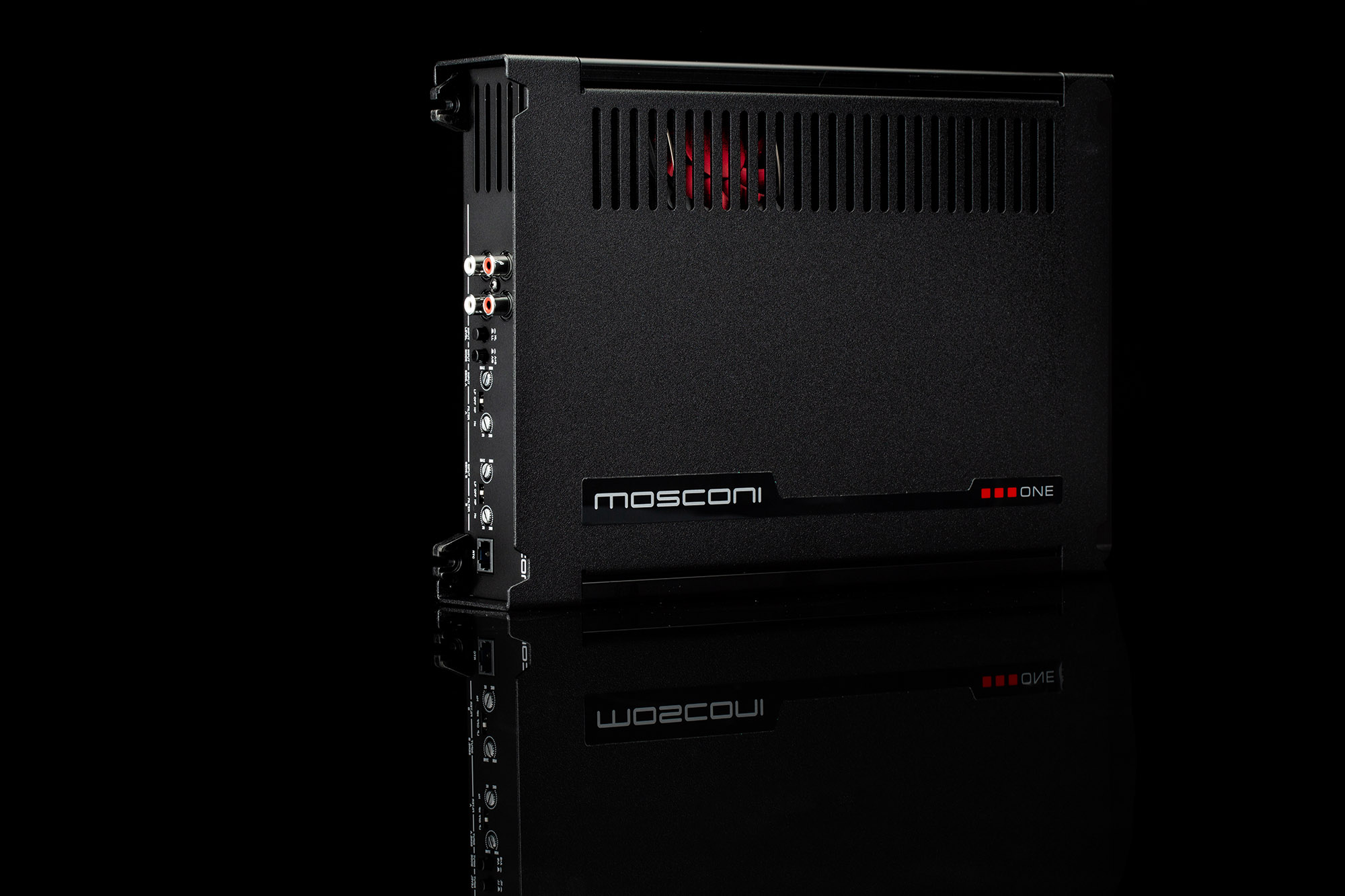

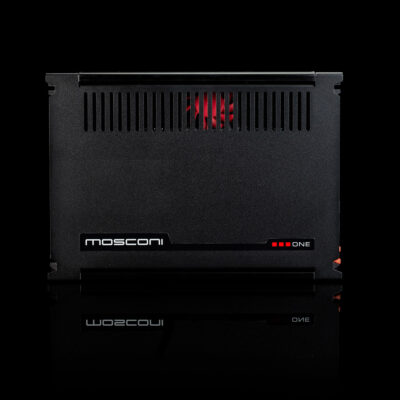

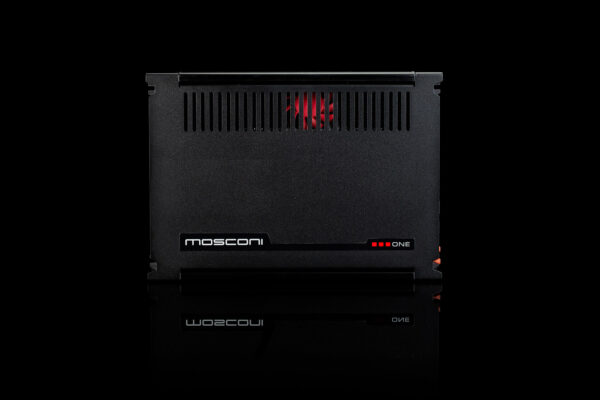

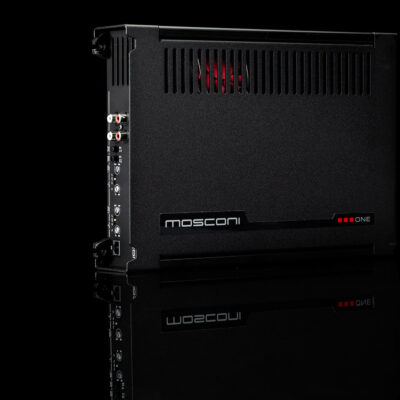

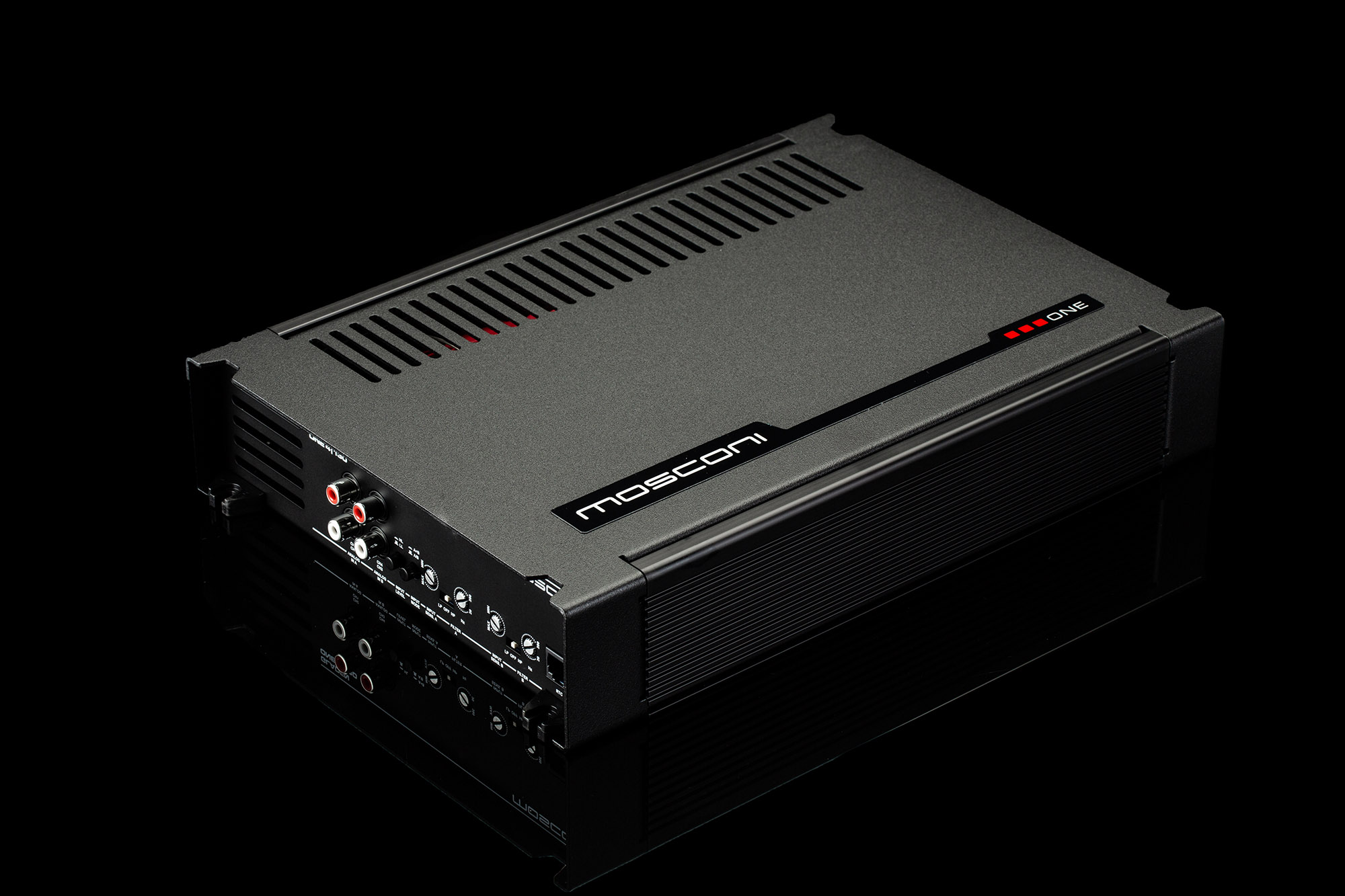

4-Channel High Quality Amplifier

  • 4 channel amplifier
  • Class AB technology
  • Up to 4 x 175 Watts @ 2 Ohm
  • 12 V and 24 V version

Download:

Description

FEATURES

The MOSCONI ONE 4|130 is a universal 4 channel high quality amplifier in Class AB technology. It is the ideal amplifier for speaker systems and/ or medium-sized subwoofers. The ONE 4|130 is designed as a double stereo amplifier, but can also be operated in three-/ or two-channel mode. This amplifier is powerful and thanks to the analog Full Mosfet-technology has outstanding sound characteristics.

  • Remote volume control (optional)
  • G-HOC slot

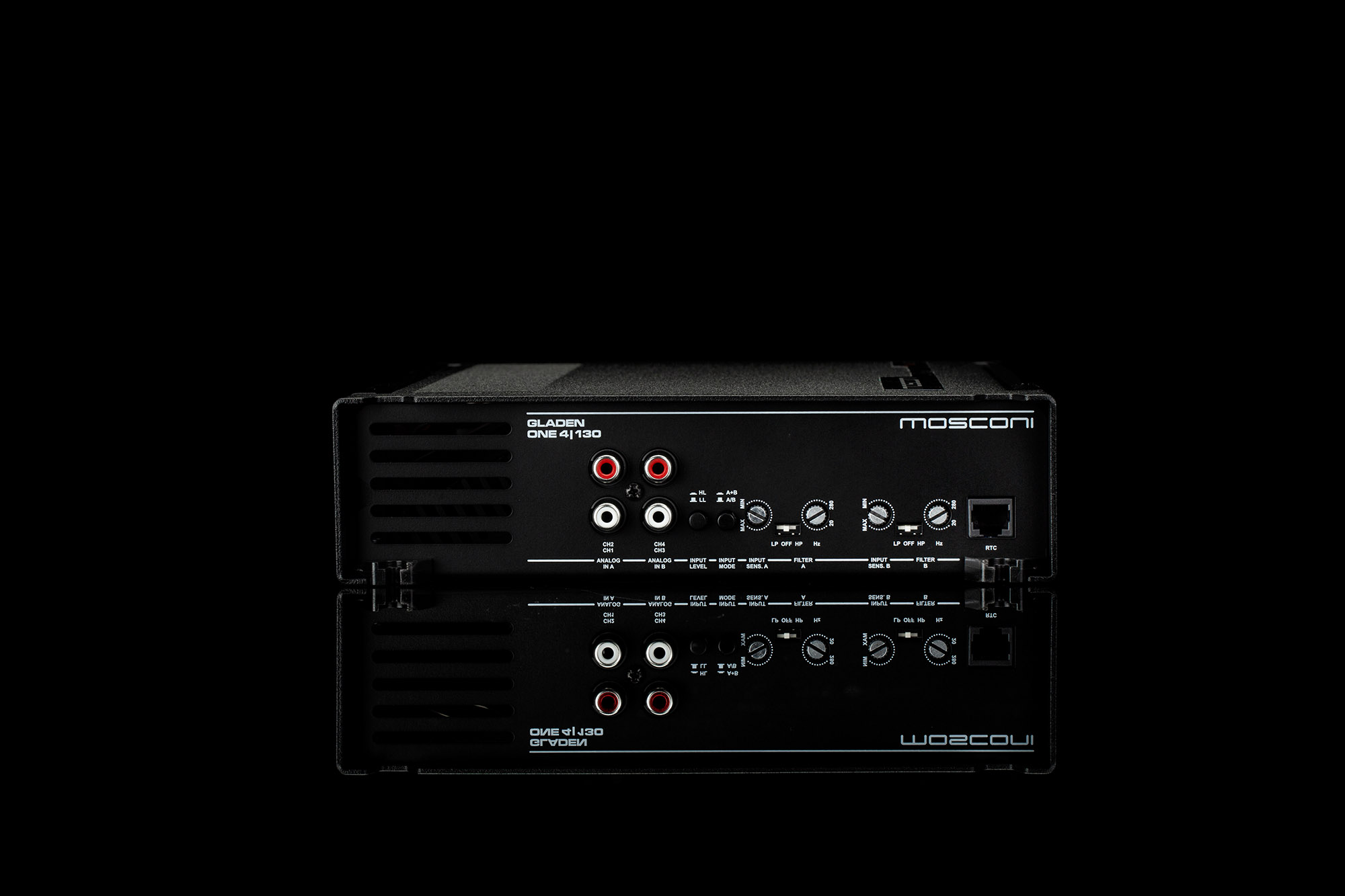

  • Low level / high level input mode (via switch)
  • Auto Sense (only in High Level mode)
  • 24 Volt version for truck operation available

Output Power:

  • Output power @ 4Ω: 4 x 130 Watts
  • Output power @ 2Ω: 4 x 175 Watts
  • Bridged Output power @ 4Ω: 2 x 350 Watts

Specifications:

  • Input sensitivity: 0.35 V ÷ 16 V
  • Crossover: 20 – 225 Hz / HIGH pass – LOW pass – OFF
  • Dimensions: 310 x 200 x 50 mm
  • Weight: 2,6 kg
